FM-200 vs Novec 1230 vs CO2 ในห้องเซิร์ฟเวอร์ — NFPA 2001 + NFPA 12 เลือกระบบไหน

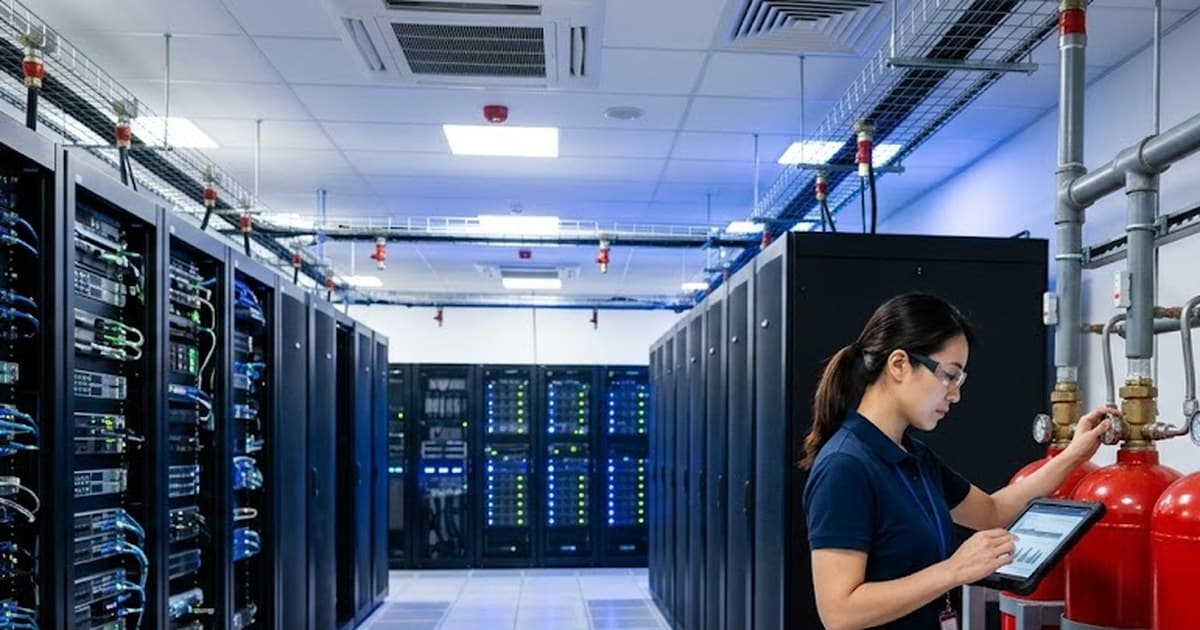

ทำไม Server Room Fire Suppression แตกต่างจากห้องอื่น

ห้องเซิร์ฟเวอร์ + Telecom + Critical electronics:

• ต้อง: dry agent (ไม่ใช้น้ำเลย)
• ต้อง: clean (ไม่ทิ้ง residue ทำให้ electronics เสียถาวร)
• ต้อง: electrically non-conductive
• ต้อง: ระเหยใน 10 วินาที (ดับไฟก่อน fire propagates)
• ต้อง: safe for occupants (มีคนเข้า-ออก)

NFPA 75 + NFPA 76 ระบุ: ห้องเซิร์ฟเวอร์ critical = ใช้ clean agent OR pre-action sprinkler (water only release if smoke + heat detected together)

Clean agent options: FM-200 (legacy) · Novec 1230 (new standard) · Inert gas (Argonite, Inergen) · CO2 (special cases only)

ตารางเปรียบเทียบ Agent

Decision Framework

flowchart TD
    Start[Type of room?] --> Q1{Occupied space?}
    Q1 -->|Yes - human entry| Q2{Existing system?}
    Q1 -->|No - unmanned| Q3{Concerned about long-term cost?}

    Q2 -->|Yes FM-200| MaintainFM[Maintain FM-200
plan replacement 5-10 yr]
    Q2 -->|No - new install| Novec[Install Novec 1230
future-proof + safer]
    Q2 -->|Inert gas existing| MaintainIG[Maintain Inergen/Argonite
good for long-term]

    Q3 -->|Yes - tight budget| CO2[CO2 acceptable
but NEVER occupied]
    Q3 -->|No - prefer safety| Novec2[Novec 1230 still preferred]

NFPA 2001 Sizing Calculation

Step 1: Determine room volume

• Length × Width × Height (ในมิเตอร์ → m³)
• Subtract: non-flooded volume (large equipment, raised floor space if not sealed)

Step 2: Apply design concentration

• FM-200: 7% (Class A) → 9% (Class B liquid)
• Novec 1230: 4.5-6% (Class A)
• Apply safety factor: +10% (manufacturer recommendation)

Step 3: Compute agent mass

For FM-200:

Agent mass (kg) = Volume (m³) × Concentration (%) / 100 × Density (1.41 kg/m³)
Example: 300 m³ × 7% × 1.41 = 29.6 kg
With safety factor: 29.6 × 1.10 = 32.6 kg

For Novec 1230:

Agent mass (kg) = Volume (m³) × Concentration (%) / 100 × Density (1.60 kg/m³)
Example: 300 m³ × 5.5% × 1.60 = 26.4 kg
With safety factor: 26.4 × 1.10 = 29 kg

Step 4: Cylinder selection

• 67-liter standard cylinder holds ~70-80 kg FM-200 → 1 cylinder for 300 m³ OK
• 80-liter cylinder holds ~110-130 kg Novec 1230 → 1 cylinder OK
• Multiple cylinders for >500 m² (cascade discharge)

Step 5: Piping + nozzle design

• ตาม NFPA 2001 + ISO 14520 hydraulic calculation
• Velocity 1.5-3 m/s in distribution piping
• Nozzle placement: every 12-15 m² floor area
• Discharge time 10 sec max for clean agents

Real Project Example

Project: Data Center Bangkok (180 m² server room + 15 m² UPS room)

Server room (180 m² × 3m = 540 m³):

UPS room (15 m² × 3m = 45 m³ unmanned):

Verdict for this project:

• Server room: Novec 1230 (occupied, future-proof, ฿200K premium worth it for 20 yr)
• UPS room: CO2 (unmanned, save ฿200K)

Detection + Activation

Smoke Detection (VESDA — Very Early Smoke Detection)

• Continuously samples air through pipes from ceiling
• Detects smoke at ppb level (much earlier than spot detector)
• Reduces false discharge by 60-80%
• Cost: ฿80-150K per 200 m² zone

Combined Detection

• Standard: 2-zone cross-detection (smoke + heat) — minimizes false alarm
• Required: Manual abort button (30 sec delay) inside protected room
• Required: Audible + visual alarm 60 sec before discharge

Activation Sequence

sequenceDiagram
    Smoke detector->>+Control Panel: Alarm signal
    Heat detector->>+Control Panel: Alarm signal
    Control Panel->>+Control Panel: Cross-zone confirm
    Control Panel->>+Audible alarm: 60 sec warning
    Audible alarm->>+Personnel: Evacuate
    alt Abort button pressed
        Personnel->>+Control Panel: Manual abort
        Control Panel->>+System: HOLD discharge
    else No abort
        Control Panel->>+Solenoid valve: Open
        Solenoid valve->>+Cylinder: Release agent
        Cylinder->>+Piping: 10-sec discharge
        Piping->>+Nozzles: Distribute agent
        Nozzles->>+Room: Suppress fire
    end

Maintenance Requirements (per NFPA 2001 + NFPA 12)

Daily

• ✅ Visual check control panel — all green status

Monthly

• ✅ Visual inspection cylinders + piping (no damage, no leak)
• ✅ Verify pressure gauge readings (FM-200 25-42 bar at 21°C)
• ✅ Test alarm + warning lights

Semi-Annual

• ✅ Hydrostatic test of cylinders (NFPA 2001 §4.3)
• ✅ Discharge test piping integrity (without releasing agent)
• ✅ Smoke detector sensitivity calibration

Annual

• ✅ Comprehensive system inspection by qualified technician
• ✅ Weight check cylinders (NFPA 2001: refill if loss > 5%)
• ✅ Detection system functional test (all sensors trigger correctly)
• ✅ Control panel battery + UPS test

5-Yearly

• ✅ Cylinder valve overhaul
• ✅ Piping hydrostatic test

12-Yearly

• ✅ Complete cylinder hydrostatic re-test (DOT 4BA cert)

Cost: Annual maintenance 5-8% of install cost = ฿35-100K/yr for typical 100-200 m² room

Common Mistakes ในการติดตั้ง

1. Insufficient room sealing

• Agent escapes through cable trays, raised floor gaps, AC ducts
• Result: Concentration drops below design % → fire reignites
• Fix: Conduct Door Fan Test (NFPA 2001) before commissioning + seal all openings

2. Wrong concentration calculation

• Use volume of empty room, not actual furniture-occupied
• Result: Over-design (waste) or under-design (failure)
• Fix: Subtract large equipment volume if non-flooded

3. Skipping smoke detection upgrade

• Standard ceiling-mounted smoke detector misses early-stage fires
• Result: Fire detected late, agent discharge but fire already large
• Fix: Use VESDA for critical rooms (data center, fab)

4. Mixing agent types

• One zone with FM-200, next zone with Novec 1230 (different concentrations)
• Result: Operator confusion, wrong refill type causes failure
• Fix: Standardize on one agent per facility

5. No manual abort

• Personnel inside cannot stop discharge before evacuation
• Result: Property damage during false alarm
• Fix: NFPA 2001 §5.1 requires manual abort with 30-sec delay

6. Cylinders in wrong location

• Cylinders inside protected room — fire damages cylinders before discharge
• Result: System failure when needed most
• Fix: Cylinders in separate room or outdoor protected enclosure

Saha Service Packages

Tier 1: Design + Engineering (฿80-200K)

• Site survey + room volume measurement
• Risk assessment (Class A/B/C fire hazards)
• Door Fan Test recommendation
• NFPA 2001 sizing + cylinder selection
• Single-line piping diagram

Tier 2: Procurement + Installation (฿650K-1.6M for 100 m²)

• Agent supply (FM-200/Novec 1230/CO2)
• Cylinders + valves (UL approved)
• Piping + nozzles + detection
• Control panel + integration with BMS
• Commissioning + Door Fan Test

Tier 3: Maintenance Contract (฿35-100K/yr)

• Monthly + semi-annual + annual inspection
• Refill agent after discharge
• Cylinder hydrostatic re-test (every 5 yr)
• 24/7 emergency response

Tier 4: Compliance Audit (฿30-80K)

• NFPA 2001/12 compliance review existing system
• Insurance audit support
• Permit renewal assistance (กรมโรงงาน + กรมป้องกันและบรรเทาสาธารณภัย)

Summary

• 3 common clean agents: FM-200 (legacy, phase-out), Novec 1230 (current standard), CO2 (unmanned only)
• Novec 1230 = future-proof — GWP = 1, safe for occupants, NFPA 2001 approved
• FM-200 still acceptable for existing systems but plan migration
• CO2 lethal in occupied space — only for unmanned electrical rooms
• Sizing per NFPA 2001: room volume × concentration × density × safety factor
• Detection: VESDA recommended for critical rooms
• Maintenance: annual 5-8% of install cost
• 6 common mistakes to avoid (sealing, sizing, detection, mixing agents, abort, cylinder location)
• Cost 100 m² room: Novec 1230 ฿850K-1.5M · FM-200 ฿650K-1.2M · CO2 ฿400-700K
