Warehouse Racking
Industrial racking systems — full range
Sahawatthanakit (1988) designs and installs every type of warehouse racking — Selective · Drive-in · Pallet · Cantilever · Micro/Medium/Heavy Rack · Mezzanine — engineered to AS 4084 / EN 15512 / ANSI MH16.1 for warehouses, factories, and distribution centers. Based in Nonthaburi — nationwide delivery, with free site survey and layout design across Bangkok and surrounding provinces (project work nationwide). Send your floor area and load requirements in chat for a layout and quote right away.
Standards & Certifications
Pallet racks designed and installed per AS 4084:2012 (Australian Standard — widely used across Asia-Pacific), EN 15512:2020 (European steel static storage), and RMI/ANSI MH16.1 (US) when MNC clients require. Safety factor 2.0 for static load, 1.5 for pallet handling. Load capacity specified at three levels: beam load 1,500-3,000 kg, bay load 4,500-12,000 kg, system total depends on seismic zone (per Thailand's มยผ.1301-1302-61) and height. Load capacity plate posted on every bay per AS 4084 §9. We supply Selective / Drive-in / Drive-thru / Push-back / Cantilever / Mezzanine systems — every project completes load testing before handover.
Products sourced from OEM-approved manufacturers — quality and certification you can trust
Heavy-Duty Racking System
AS 4084 · EN 15512 · ANSI MH16.1
Complete racking systems — Selective, Drive-In, Cantilever, Heavy-Duty Pallet, Micro Rack — per AS 4084, EN 15512, ANSI MH16.1. Load capacity 800-3,000 kg per level.
Compare specs + price + recommendations
Free comparison tables — full specs, real prices, standards references, and use-case picks
All products available — pricing quoted by volume and delivery schedule

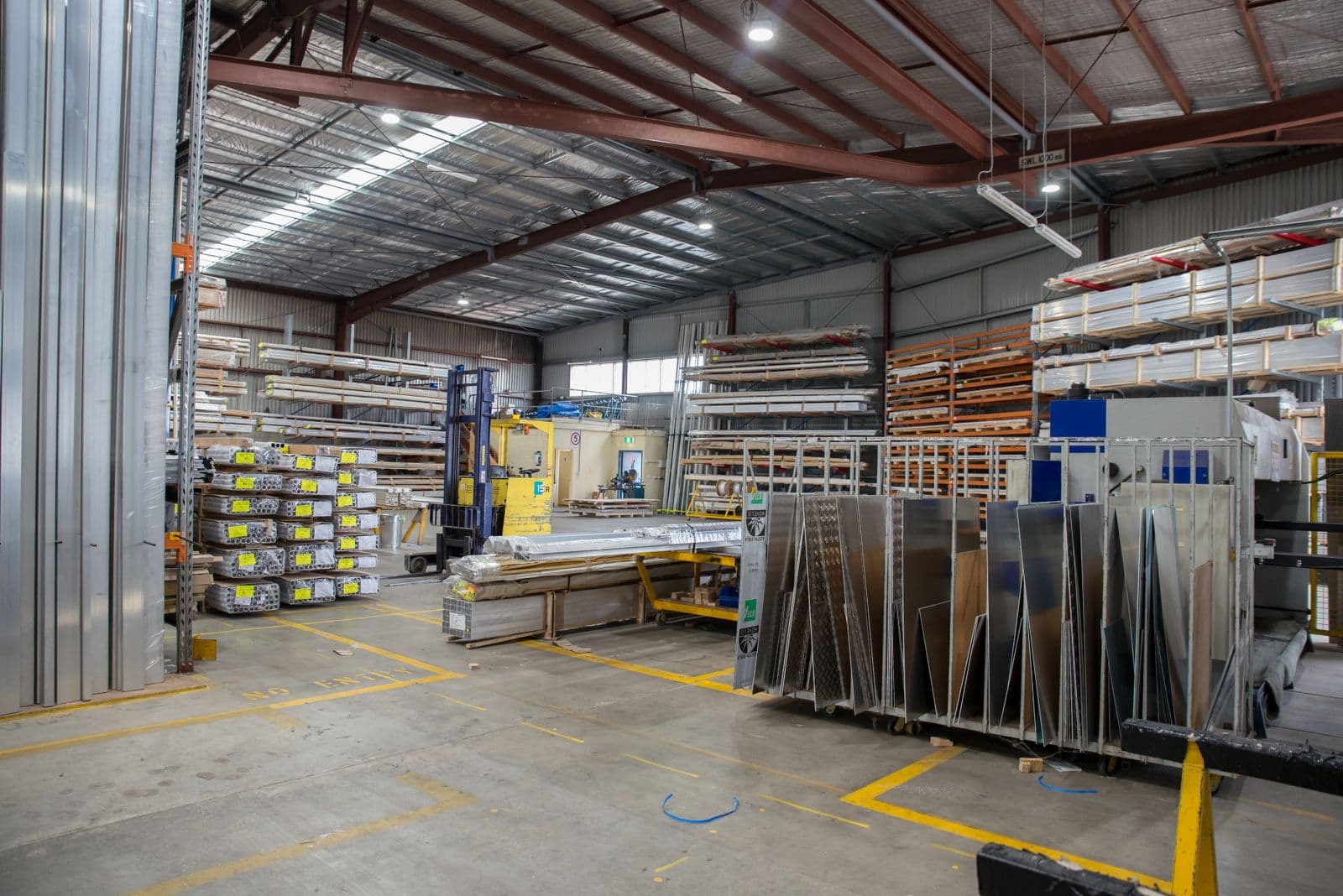

Heavy Duty Rack 1,300 kg/level
SKU WH-HVY-1300- · Type: heavy_duty
- · load_per_level: 1300kg
Heavy Duty Rack 1,800-2,000 kg/level
SKU WH-HVY-2000- · Type: heavy_duty
- · load_per_level: 1800-2000kg
Heavy Duty Rack 800 kg/level
SKU FYDH001- · Type: heavy_duty
- · load_per_level: 800kg

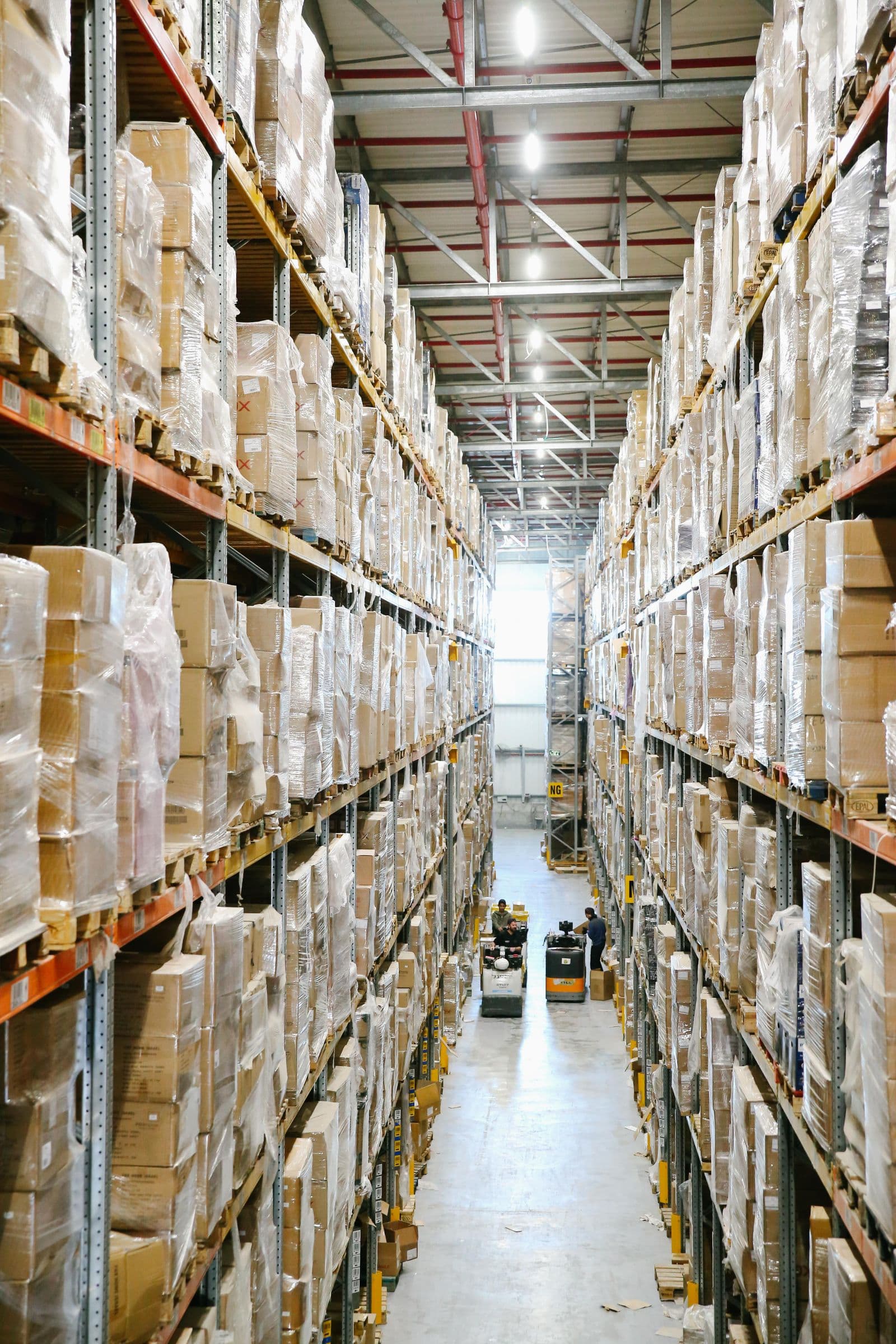

Medium Rack 300-350 kg/level
SKU WH-MED-300- · Type: medium_duty
- · load_per_level: 300-350kg
Micro Rack 100×50×200 cm 4 levels
SKU MI-01- · Type: micro_light_duty
- · depth: 50cm
- · width: 100cm
- · height: 200cm
- · levels: 4
- · load_per_level: 39kg
Micro Rack 100×50×240 cm 4 levels
SKU MI-010- · Type: micro_light_duty
- · depth: 50cm
- · width: 100cm
- · height: 240cm
- · levels: 4
- · load_per_level: 42kg
Micro Rack 100×60×200 cm 4 levels
SKU MI-05- · Type: micro_light_duty
- · depth: 60cm
- · width: 100cm
- · height: 200cm
- · levels: 4
- · load_per_level: 40kg
Micro Rack 100×60×240 cm 4 levels
SKU MI-050- · Type: micro_light_duty
- · depth: 60cm
- · width: 100cm
- · height: 240cm
- · levels: 4
- · load_per_level: 43kg
Micro Rack 120×50×200 cm 4 levels
SKU MI-02- · Type: micro_light_duty
- · depth: 50cm
- · width: 120cm
- · height: 200cm
- · levels: 4
- · load_per_level: 42kg
Micro Rack 120×50×240 cm 4 levels
SKU MI-020- · Type: micro_light_duty
- · depth: 50cm
- · width: 120cm
- · height: 240cm
- · levels: 4
- · load_per_level: 45kg
Micro Rack 120×60×200 cm 4 levels
SKU MI-03- · Type: micro_light_duty
- · depth: 60cm
- · width: 120cm
- · height: 200cm
- · levels: 4
- · load_per_level: 46kg
Micro Rack 120×60×240 cm 4 levels
SKU MI-030- · Type: micro_light_duty
- · depth: 60cm
- · width: 120cm
- · height: 240cm
- · levels: 4
- · load_per_level: 48kg
Micro Rack 150×50×200 cm 4 levels
SKU MI-04- · Type: micro_light_duty
- · depth: 50cm
- · width: 150cm
- · height: 200cm
- · levels: 4
- · load_per_level: 48kg
Micro Rack 150×50×240 cm 4 levels
SKU MI-040- · Type: micro_light_duty
- · depth: 50cm
- · width: 150cm
- · height: 240cm
- · levels: 4
- · load_per_level: 50kg
Can't find what you need? We source to spec.
Send us your spec and we'll quote it at no charge.
We've done this before — here's the proof
Engagements with documented outcomes, standards-compliance, and client trust — not stock photos.
4 anode types — chosen by environment
What customers say
Before you send an RFQ
Q1.Free design + site survey?+
Q2.Selective vs Drive-In — which to choose?+
Q3.How to verify load capacity?+
Q4.Can existing warehouse floor be reused?+
Q5.Nationwide delivery + installation?+
Q6.Load test certification before handover?+
จัดส่งแร็คชั้นวางคลังสินค้าตามพื้นที่
เลือกจังหวัดของคุณเพื่อดูข้อมูลการจัดส่งและขอใบเสนอราคา
Related case studies & insights

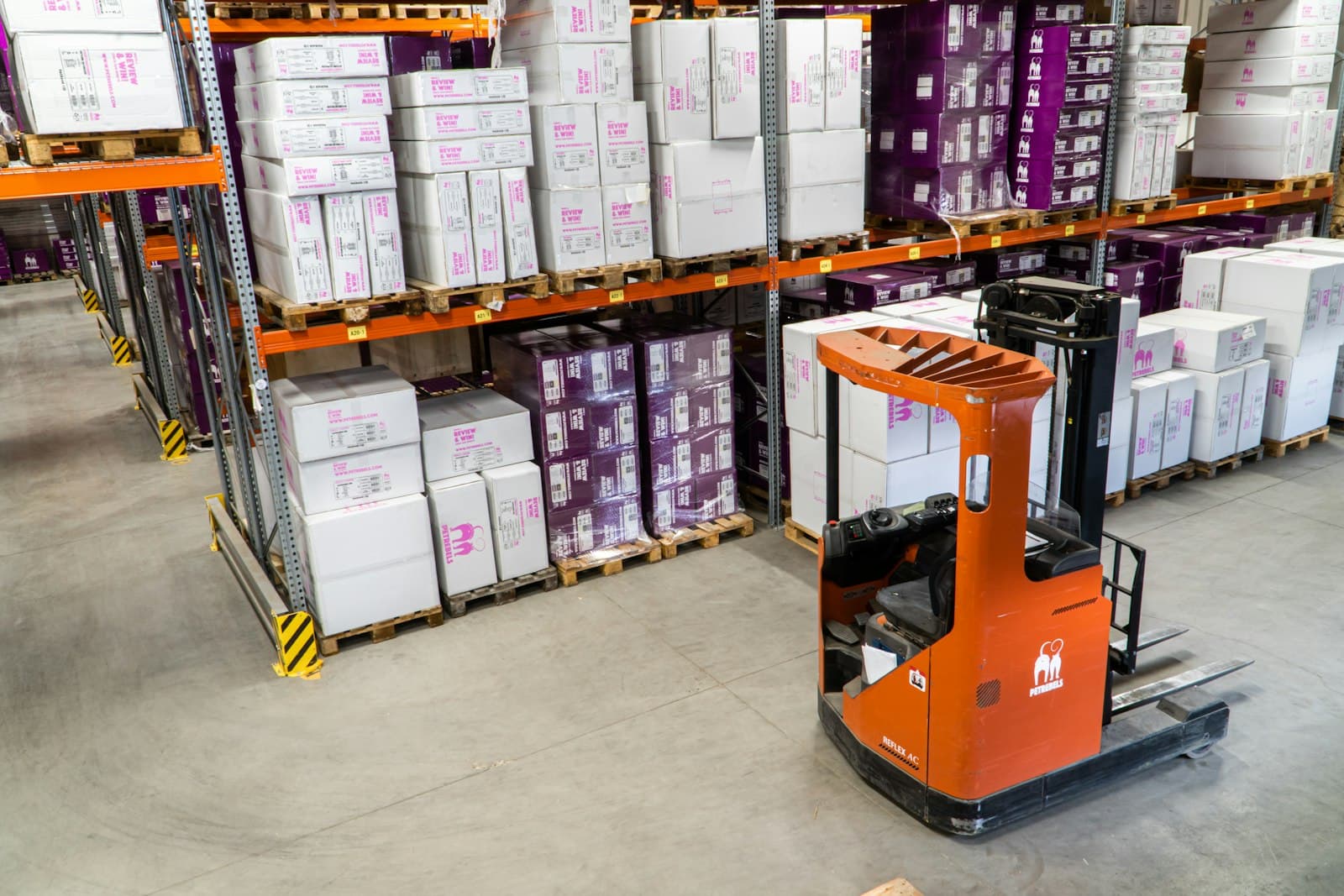

1,200-Position Selective Pallet Rack Design & Installation — FMCG Distribution Center
Case study: layout design and installation of a 1,200-position Selective Pallet Rack system for an FMCG distribution center in Samut Prakan — ANSI MH16.1 load-analyzed, 35% reduction in wasted floor area.
✓ 1,200 pallet positions installed in 14 working days
Warehouse & Distribution Center (DC) Fit-Out and Maintenance Field Guide — Select Racking to AS 4084/EN 15512 · Epoxy/PU Floors · Steel Corrosion Protection · Rooftop Solar · Forklift Oils · Cold Storage · Safe Hot Work + How to Lock In Project Material Pricing
Field guide for warehouse and distribution-center (DC) owners and maintenance teams: plan the whole building by function — choose a racking system (Selective/Drive-In/Push-Back/Cantilever) to AS 4084/EN 15512, design for seismic loads (DPT 1311/ASCE 7), guard rack uprights and inspect annually per EN 15635, coat floors (epoxy/PU/PU-cement) to the load, protect steel from corrosion, put solar on the roof only after a structural load assessment, select forklift/MHE hydraulic-gear-grease oils, run cold storage, and control hot work during rack install/expansion per NFPA 51B — plus how to standardize materials to lock project pricing and delivery.
Warehouse Automation ASRS / AGV / AMR: How to Choose, Calculate ROI, Storage Density, and ISO 3691-4 Safety for Thai Plants & DCs
Buyer's guide to warehouse automation: compare ASRS unit-load/mini-load/shuttle/VLM → choose AGV vs AMR by layout → calculate real ROI (labour + density vs capex) → contractor checklist → ISO 3691-4 / EN 528 / NFPA sprinkler standards for Thai factories and distribution centres.
Rack Protection — Column Guards / End Barriers / Row Guards per EN 15512, EN 15620 & EN 15635 to Cut Forklift Damage
A guide to selecting pallet-rack protection against forklift impact: column/upright guards, end-of-aisle barriers, guard rails, guide rails — EN 15512 (0.5 kN accidental horizontal force at up to 0.4 m), column guards ≥ 400 mm high absorbing ≥ 400 Nm, EN 15620 clearances, EN 15635 GREEN/AMBER/RED damage assessment + PRRS, and what a TOR must specify to prevent rack collapse in Thai warehouses.
