Engagement Overview

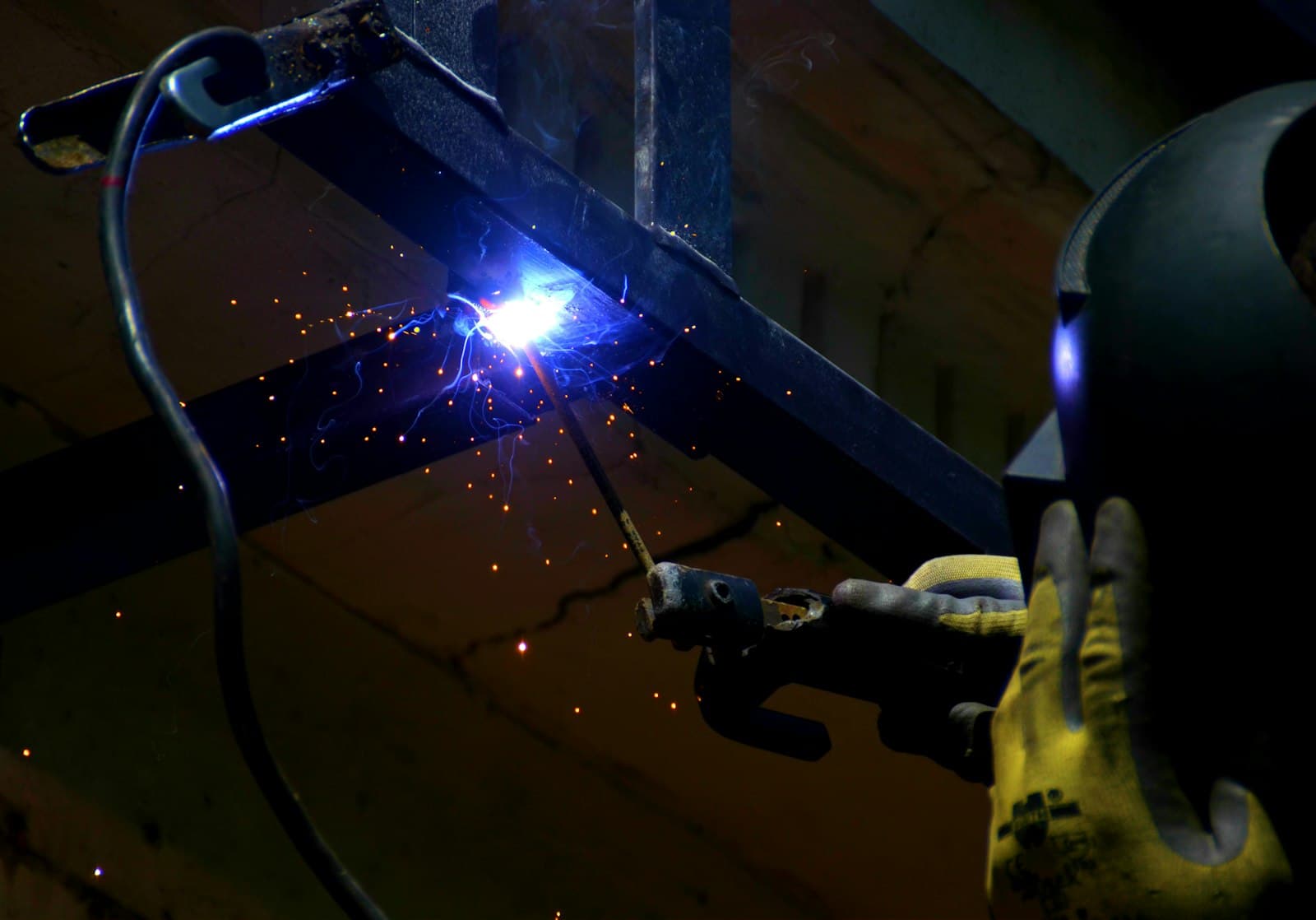

This industrial shipyard runs continuous Hot Work operations — welding, cutting, and grinding — both in open areas and in the confined spaces of ship structures. The HSE department mandates that every welding blanket must carry valid FM 4950 and EN 1869 certification before it may be used on the operational floor.
The facility had previously sourced blankets from multiple vendors. Several batches arrived without certification documents, triggering HSE holds that delayed Hot Work authorizations — and by extension, ship delivery schedules.
Customer Requirements
HSE set three non-negotiable conditions:
- Full certificate documentation per batch — FM 4950 Class and EN 1869 certificate must accompany every delivery
- Three or more grades available — Fiberglass (Class A, general use), Silica (Class B, high-temperature), Ceramic (Class C, extreme heat such as plasma cutting)
- ≤ 48-hour lead time for urgent orders — ship Hot Work is constrained by dry-dock schedules
Supplied Solution
Grade 1 — Fiberglass Welding Blanket (FM 4950 Class A)
| Detail | Specification |
|---|---|
| Material | E-glass fiberglass woven |
| Continuous service temperature | Up to 550°C |
| Sizes supplied | 1.0 × 1.8 m, 1.8 × 1.8 m |
| Applications | MIG/TIG/SMAW welding, general spark containment |
| Certification | FM 4950 Class A + EN 1869 |
Grade 2 — Silica Welding Blanket (FM 4950 Class B)
| Detail | Specification |
|---|---|
| Material | High-silica fiber (≥96% SiO₂) |
| Continuous service temperature | Up to 1,000°C |
| Sizes supplied | 1.0 × 1.8 m, 2.0 × 3.0 m (large area) |
| Applications | Plasma cutting, preheating thick structural steel |
| Certification | FM 4950 Class B + EN 1869 |
Grade 3 — Ceramic Fiber Blanket (FM 4950 Class C)
| Detail | Specification |
|---|---|
| Material | Aluminosilicate ceramic fiber |
| Continuous service temperature | Up to 1,260°C |
| Sizes supplied | 1.0 × 1.5 m |
| Applications | Extreme-heat operations, thermal shielding during structural welding |
| Certification | FM 4950 Class C |
Outcomes
| Metric | Result |
|---|---|
| Fire blanket failure incidents | Zero since switching suppliers |
| Certificate completeness per batch | 100% — no batch without documentation |
| Urgent order response time | <48 hours every order |
| Grades available | Class A / B / C — full range |
| HSE documentation holds | Eliminated |
Why the Shipyard Chose Us
- Authentic certification, not claims — FM 4950 and EN 1869 documents ship with every batch; no follow-up required
- Full grade range from one supplier — no need to manage multiple vendor relationships
- Application expertise — team can advise on correct grade before quoting
- Fast logistics — Bangkok warehouse stock enables <48-hour urgent fulfillment
Related Services
For welding or fabrication operations requiring certified fire protection — specify your grade, operating temperature, and coverage area; our team will advise and quote.
